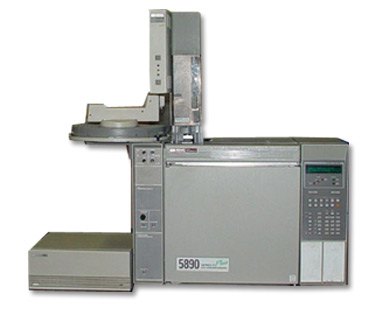

Parts for Hewlett Packard 5890 Gas Chromatograph.

INLET PARTS

PACKED COLUMN INLET Septum Nut Assy 19243-60500 1 Insulation Plate (Retainer) 19243-00050 1 (used on older models) Insulation 19231-00080 1 Injection Port Weldment 19243-80500 1 Heater/Sensor Cable Assy 05890-61140 1 - Heater, 70 W 19231-60620 1 - Contact 1251- 1679 2 - PRT Sensor 19231-60660 1 - Contact 1251- 5963 2 - Flexible Sleeving (ordered by 0890- 0737 22 the inch) 1/4 inch x 22 inch Brass Nut, 1/4 inch 0100-0056 1 Top Cover (used on newer models) 19243- 00080 1 Top Insulation (used with new

PACKED EPC INLET Top Cover 19243-00085 Insulation 19243-00100 Insulation 19243-00155 PPIP Assembly 19243-60535 Heater Sensor 05890-61540 Flex Cover 0890-0737 PRT Assembly 19231-60660 70WHeater 19243-60640 SeptumNut Assembly 18740-60835 Headspace SeptumNut 18740-60830 Top Insert Assembly 19243-80570 PPIP Brazement 19243-80580 NEW P/N Lock Plate 19243-00135 Heated Block 19243-20765 Thermal Strap 19243-00145 Nutwarmer Insulation 19234-60710 Nutwarmer Cup Assembly 19234-60700

PROGRAMMABLE COOL ON COLUMN MANUAL CONTROL 0- 30 Pressure Gauge 19320- 60650 1 O- ring 0905- 1174 5 Spacer, Pressure Gauge 19243- 40010 1 Swagelok Plastic Cap, 1/8- inch 05890- 40050 2 0- 30 Forward Pressure Regulator 19245- 60690 1 FPR Clamp Plate 19245- 20700 1 Inlet Fitting 19231- 20560 1 FID Air Restrictor (brown dot) 19231- 60610 1 PCOC Purge Regulator 19245- 60530 1 PCOC Purge Restrictor Assy. 19245- 80530 1 Vent Torque Plate 19244- 00030 1 MPCOC Flow Bracket 19245- 00100 1

SPLIT SPLITLESS CAPILLARY INLET FLOW MODULE EPC1/BPR2 Bracket 19243-00125 1/8-in. Swagelok Plastic Cap 05890-40230 0-400 Mass Flow Controller 19362-60575 Transducer Brazement 19243-80600 Hex Nut with Lockwasher 0535-0043 EPC Sensor PCB Assembly 0-100 psi (2 Channel) 19245-60020 0-100 psi (6 Channel) 19245-60025 0-15 psi (6 Channel) 19245-60050 Vent Torque Plate 19244-00030 Aux Vent Brazement 19251-80527 Septa Vent Tube Weldment 19244-80580 Proportional Control Valve 19251-60720 (includes 19251-60656) Solenoid Valve Assembly 19251-60560 Septa Purge Regulator (Approx. 3 ml) 19251-60710 Cable, 6 Channel EPC 19245-60705

PACKED EPC PACKED INLET Proportional Control Valve Replacement Kit 19245-60890 · Proportional Control Valve 19245-60950 · EPC Bracket 19245-00077 · FID Air Restrictor 19231-60610 · M12 x Swg. Fitting 19243-20680 · 0.239-in id O-ring 0905-1014 Purge Regulator (Approx. 1.5 ml) 19243-60650 EPC Bracket 19245-00077 Sensor Board, 2 Channel 19245-60020 Vent Torque Plate 19244-00030 Vent Tube Weldment (without restriction) 19244-80580 Hex Nut with Lockwasher 0535-0043 Hex Nut 2950-0203 PPIP Transducer Weldment 19243-80600 Sealing Plate 19245-00140 EPC Valve Seal Brazement, FPR 19245-80600 EPC Cable 19245-60700

PACKED SEPTUM PURGE INLET Fin 19243-00110 1 Top Cover 19243-00080 1 Top Insulation 19243-00100 1 Heater/Sensor Assembly 05890-61140 1 - Cartridge Heater, 70 W 19231-60620 1 - Contact 1251- 1679 2 - PRT (Sensor) Assembly 19231-60660 1 - Contact 1251- 5963 2 - Insulation Sleeving (ordered by 0890- 0737 22 the inch) Purged-Packed Inlet Weldment Assembly Bottom Insulation 19243-00060 1 Bottom Insulation Cover 19243-00070 1

SPLIT SPLITLESS CAPILLARY SPLIT ONLY INLET Heater/Sensor Assembly 05890-61140 · Heater, 70 W 19231-60620 · Contact 1251-1679 · PRT Assembly 19231-60660 · Contact 1251-5963 · Flexible Sleeving (ordered by the inch) 0890-0737 Shell Weldment 19251-80570 Glass Cloth 9300-0713 Insulation 0340-0686 Heat Sink 18740-20940 Shaped Insulation 19251-00020 Splitter Tube 19251-80525 Tubing Nut, 1/8-inch Brass 0100-0058 Retaining Nut 19251-20620 Gold Plated Seal 18740-20885 Stainless Steel Seal 18740-20880 Reducing Nut 18740-20800 Lower Insulation 19243-00060 Insulation 19243-00065 Lower Insulation Cover 19243-00070 Insert Assembly 19251-60575 Septa Retainer (Standard) 18740-60835 Retainer Nut for Headspace 18740-60830 Insulation 19251-00120 Column Nut 5181-8830 Split Vent Trap (Recommended) 19251C

Forward Pressure Regulators Range HP Part No. 0- 10 psig (0- 67 kPa) 19246-60530 0- 60 psig (0- 400 kPa) 19246-60540 0- 100 psig (0- 667 kPa) 19246- 60650

Backpressure Regulators Range HP Part No. 0- 15 psig (0- 100 kPa) 19246- 60560 0- 30 psig (0- 200 kPa) 19246- 60570 0- 60 psig (0- 400 kPa) 19246- 60580 0- 100 psig (0- 667 kPa) 19246- 60690

Pressure Gauges Range HP Part No. 0- 15 psig (0- 100 kPa) 19246-60520 0- 30 psig (0- 200 kPa) 19320-60650 0- 60 psig (0- 400 kPa) 19363-60500 0- 100 psig (0- 667 kPa) 19361-60560

Parts for the Agilent 6890 GC.

Many other parts available so if you do not see it please ask.

Split/Splitless Inlet Description HP Part No. Qty. Septum Nut 18740-60835 Split Vent Flow Line (14.2 in. long x 0.125 in. id) G1544-20620 Swagelok Nut, 1/8 in. brass (10/pkg) 5180-4103 Swagelok Back Ferrule, 1/8 in. brass (10/pkg) Order No. 5180-4115 Swagelok Front Ferrule, 1/8 in. brass (10/pkg) Order No. 5180-4109 Screw, M4 x 12 mm, Torx T-20 (Captive) 1390-1023 Inlet Weldment G1544-80570 Heater/Sensor Assembly G1544-61140 Screw, M4 x 8 mm, Torx T-20, 0515-2711 Top Insulation G1544-00010 Washer, 12/pkg 5061-5869 Thermal Block G1544-20570 Block Insulation G1544-00020 Thermal Nut G1544-20590 Reducing Nut 18740-20800 Insulation (lower) G1544-00030 Insulation 19243-00065 Insulation 19243-00060 Bottom Insulation Cover 19243-00070 Column Nut Order No. 5181-8830, 2/pkg) 18740-20870 Screw, M3 x 16 mm, Torx T-10 1390-1022 Plastic Fitting, HPM8, (10/pkg) 5181-3394

Split/Splitless Inlet EPC Pneumatic Module (HP part no. G1544-60500, 0–100 psig or G1544-60540, 0–150 psig) Description HP Part No. Qty. Male Connectors 1/8 in. Swagelok G1543-80030 Screw, M4 x 45 mm, Torx T-20 0515-2484 Inlet Supply Fitting G1543-20510 Screw, M3 x 20 mm, Torx T-10 0515-1319 O-rings, under connectors and fitting (12/pkg) 5180-4182 EPC Valve Replacement Kit G1530-60610 Split Vent On/Off Valve G1544 Flame Ionization Detector (FID) Description HP Part No. Qty Collector Assembly: G1531-60690 PTFE Chimney (optional) 19231-21050 Collector Nut 19231-20940 Spring Washer 3050-1246 Ignitor (Glow Plug) Assembly 19231-60680 Ignitor Cable Assembly G1531-60680 Upper/Lower Collector Insulator G1531-20700 Collector Body G1531-20690 Spanner Nut (Collector) 19231-20980 Collector Mount G1531-20550 Collector Housing G1531-20740 Gasket 0905-0915 Screw, M4 x 25 mm, Torx, T20 0515-2712 Screw, M4 x 10 mm, Torx, T20 0515-2495 Interconnect Clamp 19231-00040 FID Interconnect Assembly G1531-60710 FID Signal Board G1531-60010 FID Interface Board G1531-60020 Screw (captive) M4 x 20 mm, Torx, T20 1390-1024 Mounting Pallet G1531-40020 Base Spanner Nut 19231-20990 Thermal Strap G1531-00100 Base Weldments Packed Column FID G1531-80580 Capillary Column FID G1531-80630 Heater/Sensor Assembly G1531-61140 Nut W/Lock Washer 0535-0043 FID Block Insulation G1531-00030 FID Seal Insulation – Capillary G1531-00130 – Packed G1531-00160 Packed FID Column Adapters – FID/NPD Capillary Column 19244-80610 – FID/NPD 1/8 in. Packed Column 19231-80520 – FID/NPD 1/4 in. Packed Column 19231-80530 Nutwarmer Insulation (Order qty 3) 19234-60715 Nutwarmer Cup Assembly 19234-60700 Flame Ionization Detector (FID) Manifold Assembly Description HP Part No. Qty EPC Control Valve (Order no. G1531-60610 ) G1531-60541 NON-EPC 2 Way Valve G1531-60530 O-Rings HP M8 (Order No. 5180-4181, 12/pkg) 0905-1039 Screw, M4 x 10 mm, Torx, T20 0515-2495 EPC Control Module Assembly G1531-60520 Non-EPC Control Module Assembly G1531-60500 Screw, M3 x 25 mm, Torx T10 0515-0683 Screw, M3 x 8 mm, Torx, T10 0515-0655 Make-up Gas, Manual Forward G1531-60570 Pressure Regulator, 0-100 psi G1531-60630 Fid Manifold Regulator Brazement G1531-80520 Supply Gas Jumper Weldment G1531-80550

OVEN ASSEMBLY Description HP Part No. Qty. Door Hinge Screw G1530-20685 Oven Door G1530-60815 Fan Blade, Stainless Steel, and Set Screw 05890-80270 Oven Heater Shroud Assembly –120V USA Power G1530-61610 Screws, M4 x 0.7, Torx T-20, 0515-2711 Hex nut 0535-0043 Washer 2190-0712 Sensor Bracket Assembly G1530-80670 Hinge Pin G1530-20685 Over Motor Assembly G1530-61310 On/Off Switch Rod G1530-40010 OVEN FLAPPER ASSEMBLY Description HP Part No. Qty. Dual Duct Assembly G1530-80680 Flapper Shaft Assembly G1530-80560 Screw, Torx T-20, M4 x 12 mm 0515-2496 Stepper Motor Assembly G1530-60940 Screw, Torx T-10, M3 x 8 mm 0515-0655
